Dry mortar mixer production line automatic tile adhesive machine
Description:
The main components of this product line: raw material storage
system, automatic weighing system, tracking system, mixing system,
pneumatic system, packaging system and dedusting system. the main
control system manages the production order based on the fixed
formula ratio, so the production line will dosage the coarse
material from the storage silos, once you have weighed
automatically, the material will enter the tank with the pre-filter
and agraverse mixer efficiently. ,To mix in a short period
(2-3min). The well mixed material will be dumped into the holding
tank, which will make the secondary mix, then down to the new
automatic filling and packing machine created. The packing machine
operates efficiently based on fixed time and mixer volume,
increases capacity sharp, well-packed ready-made mortar will be
transferred to the finished mortar area, ready for sale.
Parameter:
| model | tile adhesive machine |
| capacity | 10-12t/h |
| occupied area | 60-100m2 |
| hight | 9m |
| total power | 60-120kw |
| batch and packaging | automatic batching and automatic packaging |
| mixer type | twin sahft paddle mixer |
Raw material of dry mortar plant:
1. Cementing material: cement, lime, plaster.
2. Aggregate: yellow sand, quartz sand, limestone, dolomite,
expanded perlite etc.
3. Mineral admixture: industrial byproduct, industrial slag, fly
ash, pozzolana, fine silica powder etc.
4. Water-retention and thickening material.
5. Chemical additives.
Packaging
1, HS code can be supplied to you for checking importing tax in
your country.
2, Standard export packaging by container, which should be
applicable to international requirement.
3, Big size equipment will be fixed by steel wire, while small ones
together with spare parts will be packed into wooden boxes.
4, Standard configuration: 2X40HQ container for 1 set 10t/h dry
mortar plant.
Shipping
Usually by sea, sometimes by land, air.
Delivery time: 15-30 days after deposit arrived

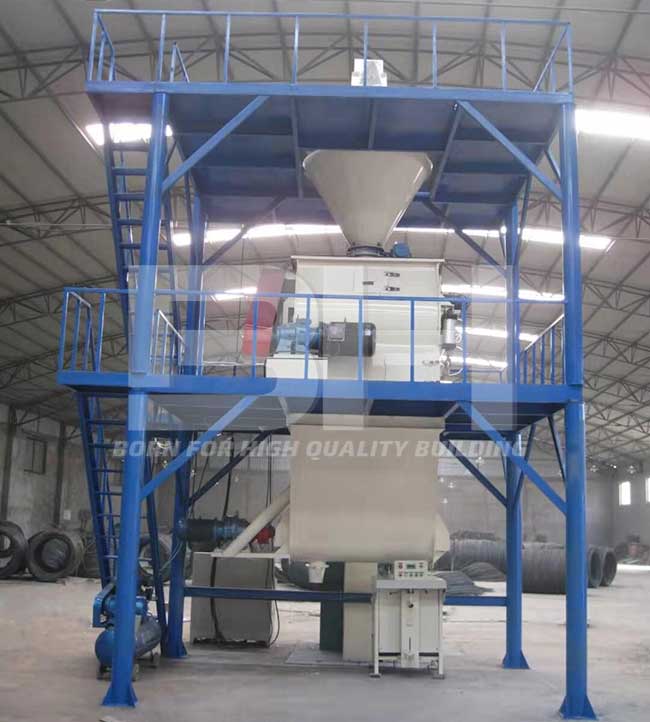

Installation site:
Package and delivery:
